LECA / Products / Industrial Automation / AXOR Products / MiniMagnum (MM)

Product Number: —

EAN: —

Categories: Industrial Automation > AXOR Products

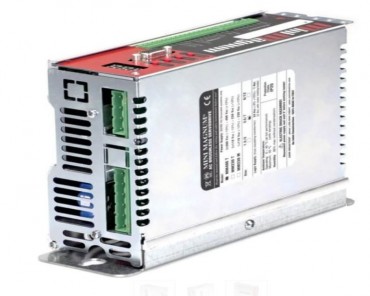

MiniMagnum (MM)

Digital brushless servodrive with 100-480Vac mains supply, for motors up to 7.5Nm. A truly versabile servodrive, ideal for any application. It can be configured to control any brushless servomotor and is optimized for combination with the SSAX series.

Product Number: — EAN:

Select Variant Enquiry Now

Key Features:

Fast-drying formula for quick repairs
Non-conductive properties for electrical safety
Excellent media resistance
Professional grade quality
Works reliably even under water
Can be applied on wet surfaces

Product Description

<ul>
<li>Sine wave B.E.M.F. & current</li>
<li>SpeederOne.1 interface and control software</li>
<li>RS232 port for PC</li>
<li>RS232 to CANbus multidrop</li>
<li>Display & 4 buttons for settings</li>
<li>Built-in EMC filter and inrush circuit</li>
<li>Braking circuit with built-in resistor</li>
<li>Boosted external braking resistors</li>
<li>Dynamic braking for Powercut</li>
<li>Holding brake management</li>
<li>Safety enable function</li>
<li>9 digital inputs & 2 digital outputs</li>
<li>1 OK relay output</li>
<li>2 analog outputs</li>
<li>Scalable emulated encoder</li>
</ul>

Data Sheet

View Data Sheet

Brochures

No brochures available.

Certificates

No certificates available.

Video

No product video available.

Review

There are no reviews yet.
