Product Description

KEB Textile Industry Application Drives

Powerful

Low-Noise

Production Increasing

Process Optimized From Drive Specialist for Textile Machines:

competent counsel directly from the manufacturer of textile-machine suited drive systems

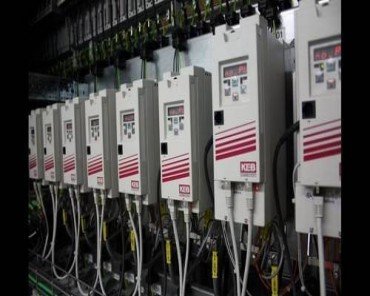

KEB COMBIVERT permits the standard control with analog signals as well as the digital data communication between frequency inverter and primary process control systems e.g.: CAN, LON, Profibus, Interbus Loop. The transparency of the drive is given. cost optimization through mass production keeping the corresponding standards CE, VDE, UL, CUL worldwide service modern manufacturing facilities in Germany, Japan, USA options: radio interference suppression, serial networking, system energy recovery, sine-wave filter, choke, transformer complete inverter series from 0.37 kW up to 250 Kw low-noise and low-loss power stages with IGBT power semiconductors cooling of power stage
a) conventional with forced ventilation of control cabinet or
b) with push-through heat sink or
c) with liquid cooling, consequently closed design of control cabinets
d) as motor inverter
* user friendly operation
* speed presetting for the functions:
– spinning start-up speed
– production speed
– spin-out-speed
– position regulation
analog: ± 10V, 0-10V or 0-20mA, 4-20mA
digital: – as set value, 8 fixed speeds selectable via inputs
– serial interface with
– DIN 66019 (Ansi X3.28)
– Profibus
– Interbus
– CAN-BUS
– LON-BUS
