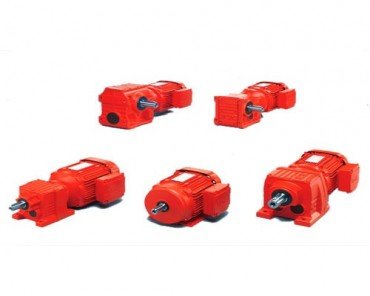

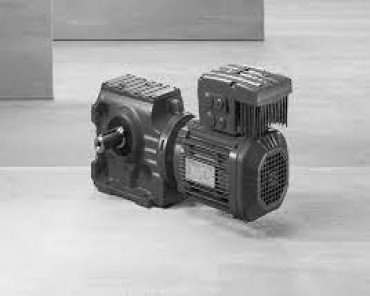

MOVIMOT®

The Smart Gearmotor With Integrated Frequency Inverter

Standard Features

• Economical solution for variable speed AC motor control
• Sensorless vector control provides excellent speed regulation and up to 50:1 speed range
• Designed to match motor specifications; no parameter setup required
• Eliminates problems associated with Reflected Wave Phenomenon by eliminating long motor leads
• IP65 rating for harsh environments
• No panel space required — cost savings in enclosure and installation labor
• Supplied standard with SEW motor certified by CSA for Inverter Duty
• Retrofit kit allows field modification of existing across- the- line motors
• Adjustable carrier frequency to 16kHz for quiet operation
• 24V discrete inputs

Specifications

• 0.5 – 5 HP with input voltage 380 – 500 VAC ± 10% 50/60 Hz
• 0.5 – 3 HP with input voltage 200 – 240 VAC ± 10% 50/60 Hz
• Frequency range: 2 – 100 Hz
• Integrated speed pot for local speed control
• Standard 4-quadrant operation with integrated brake resistance
• Status LED indicates fault/status type
• 2 preset speeds
• Fault relay output (SPDT)
• Standard RS 485 interface (MOVILINK® protocol)
• Protective functions – overload (motor, brake, and inverter), overvoltage, phase failure

Optional Features

• External setpoint converter MWA 11A converts 0…10VDC or 4…20mA to RS 485
• Full-featured keypad MKP 11A for run/stop, speed, direction control and alternate units display
• Digital speed display/adjustment keypad MBG 11A
• Digital speed display/adjustment keypad integrated with 24VDC supply – MLG 11A
• PROFIBUS® DP, DeviceNet™, INTERBUS and CANopen interface with additional auxiliary discrete I/O (4 inputs/2 outputs or 6 inputs)
• AS-interface (4-bit) with 2 additional auxiliary inputs
• MDG Diagnostics unit for displaying motor current, operating, input terminal, message relay and brake status information
