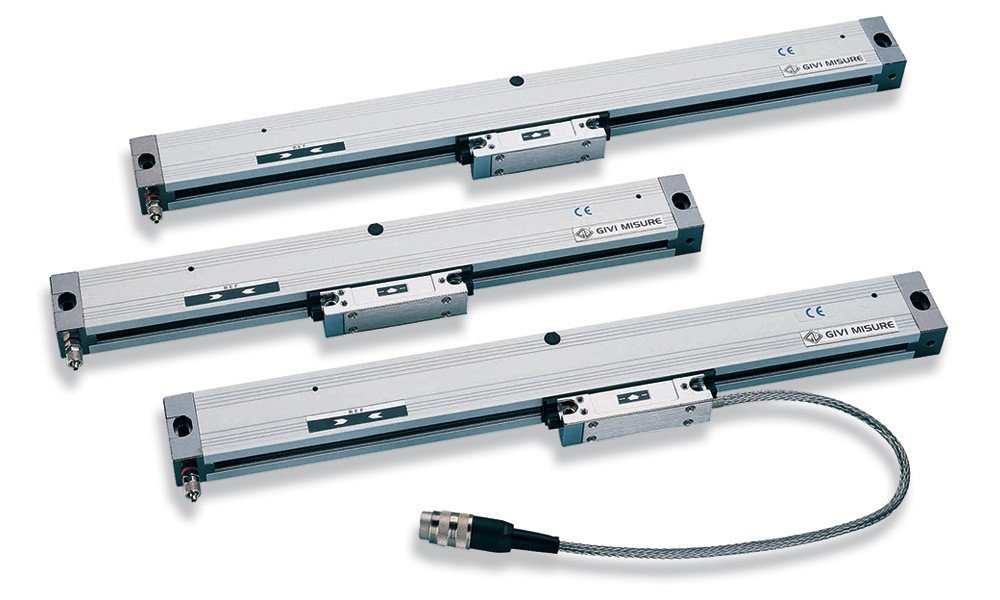

GVS 300 & GSV 400 Series
Key Features:
- GVS 300 Incremental optical scale of small overall dimensions Small-size incremental scale, for applications with limited installation space. Possibility of registration which simplifies alignment and allows the use on rough surfaces (retrofitting and machines for which application was not foreseen). Resolutions up to 0.1 μm. Accuracy grade ± 5 μm. Two sealing lips made of special elastomer resistant to oil and wearing, for an excellent protection of the grating. Reference indexes at constant step, in central position or in different positions at request. Wide alignment tolerances. High stability of LINE DRIVER signals. Linear thermal expansion coefficient λ = 10.6 x 10-6 °C-1 suitable for the application. Protected against inversion of power supply polarity and short circuits on output ports. GVS 400 Incremental optical scale for various applications Small overall dimensions. Rugged and heavy profile with a wide cross-section. Dimensions 39×23 mm. Resolutions up to 0.1 μm. Accuracy grade ± 5 μm. Four sealing lips made of special elastomer resistant to oil and wearing, for an excellent protection of the grating. In modular version for measuring lengths over 6,500 mm, or for lower measuring lengths on request. Reference indexes at constant step, in central position or in different positions at request. Wide alignment tolerances. High stability of LINE DRIVER signals. Armored connecting cable without external connections. Connector inside the transducer. Linear thermal expansion coefficient λ = 10.6 x 10-6 °C-1 suitable for the application. Full possibility to disassemble and reassemble the scale. Protected against inversion of power supply polarity and short circuits on output ports.
Product Description
GVS 300 Incremental optical scale of small overall dimensions Small-size incremental scale, for applications with limited installation space. Possibility of registration which simplifies alignment and allows the use on rough surfaces (retrofitting and machines for which application was not foreseen). Resolutions up to 0.1 μm. Accuracy grade ± 5 μm. Two sealing lips made of special elastomer resistant to oil and wearing, for an excellent protection of the grating. Reference indexes at constant step, in central position or in different positions at request. Wide alignment tolerances. High stability of LINE DRIVER signals. Linear thermal expansion coefficient λ = 10.6 x 10-6 °C-1 suitable for the application. Protected against inversion of power supply polarity and short circuits on output ports. GVS 400 Incremental optical scale for various applications Small overall dimensions. Rugged and heavy profile with a wide cross-section. Dimensions 39×23 mm. Resolutions up to 0.1 μm. Accuracy grade ± 5 μm. Four sealing lips made of special elastomer resistant to oil and wearing, for an excellent protection of the grating. In modular version for measuring lengths over 6,500 mm, or for lower measuring lengths on request. Reference indexes at constant step, in central position or in different positions at request. Wide alignment tolerances. High stability of LINE DRIVER signals. Armored connecting cable without external connections. Connector inside the transducer. Linear thermal expansion coefficient λ = 10.6 x 10-6 °C-1 suitable for the application. Full possibility to disassemble and reassemble the scale. Protected against inversion of power supply polarity and short circuits on output ports.
<h3>The models</h3>
<p><strong>GVS 300 T100</strong></p>
<p>Resolution 100 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A62_A_GVS300_GIVI_ENG-1.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 300 T50</strong></p>
<p>Resolution 50 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A62_A_GVS300_GIVI_ENG-1.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 300 T10</strong></p>
<p>Resolution 10 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A62_A_GVS300_GIVI_ENG-1.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 300 T5</strong></p>
<p>Resolution 5 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A62_A_GVS300_GIVI_ENG-1.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 300 T2</strong></p>
<p>Resolution 2 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A62_A_GVS300_GIVI_ENG-1.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 300 T1</strong></p>
<p>Resolution 1 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A62_A_GVS300_GIVI_ENG-1.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 300 T05</strong></p>
<p>Resolution 0.5 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A62_A_GVS300_GIVI_ENG-1.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 300 T02</strong></p>
<p>Resolution 0.2 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A62_A_GVS300_GIVI_ENG-1.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 300 T01</strong></p>
<p>Resolution 0.1 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A62_A_GVS300_GIVI_ENG-1.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 400 T100</strong></p>
<p>Resolution 100 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A63_A_GVS400_GIVI_ENG-1.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 400 T50</strong></p>
<p>Resolution 50 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A63_A_GVS400_GIVI_ENG.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 400 T10</strong></p>
<p>Resolution 10 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A63_A_GVS400_GIVI_ENG.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 400 T5</strong></p>
<p>Resolution 5 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A63_A_GVS400_GIVI_ENG.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 400 T2</strong></p>
<p>Resolution 2 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A63_A_GVS400_GIVI_ENG.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 400 T1</strong></p>
<p>Resolution 1 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A63_A_GVS400_GIVI_ENG.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 400 T05</strong></p>
<p>Resolution 0.5 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A63_A_GVS400_GIVI_ENG.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 400 T02</strong></p>
<p>Resolution 0.2 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A63_A_GVS400_GIVI_ENG.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
<p><strong>GVS 400 T01</strong></p>
<p>Resolution 0.1 µm <a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A63_A_GVS400_GIVI_ENG.pdf" target="_blank">Datasheet</a> <a href="javascript:;" target="_blank">Manual</a> </p>
