AGM Series

Product Description

AGM Absolute magnetic sensor with serial interface SSI-BiSS or CANopen Linear magnetic sensor, with direct reading of the absolute position. High performance, with a measuring length up to 30,000 mm. Resolutions up to 1 μm and repeatability ± 1 increment. Extremely easy and fast mounting of the entire measuring system, with wide alignment tolerances and sensor/magnetic band gap up to 1 mm. Serial interface SSI-BiSS (with or without 1 Vpp analog signal) or CANopen. SSI or CANopen protocol and programmable resolutions. Profibus-DP, Profinet, DeviceNet, ModBus and DRIVE-CLiQ protocols, through conversion gateways. High-speed serial data transfer. Small-sized, for applications with limited installation space. Magnetic band width 10 mm. Insensitive to dust and liquids (IP 67 protection class). Magnetic sensor body made of die-cast metallic material. High signal stability, even with high speed and accelerations. Cable suitable for continuous movements. Axial or radial cable output. Protected against inversion of power supply polarity and short circuits on output ports. Warning indication through LED.

<h3>The models</h3>

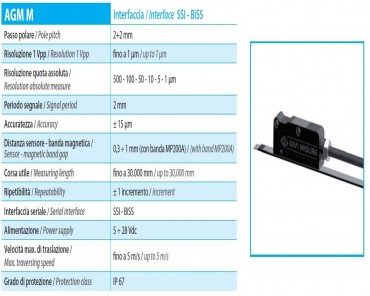

<p><strong>AGM M</strong></p>

<p>Pole pitch 2+2 mm, SSI-BiSS interface&nbsp;<a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST02_A48_C_AGM_GIVI_ENG.pdf" target="_blank">Datasheet</a>&nbsp;<a href="javascript:;" target="_blank">Manual</a>&nbsp;</p>

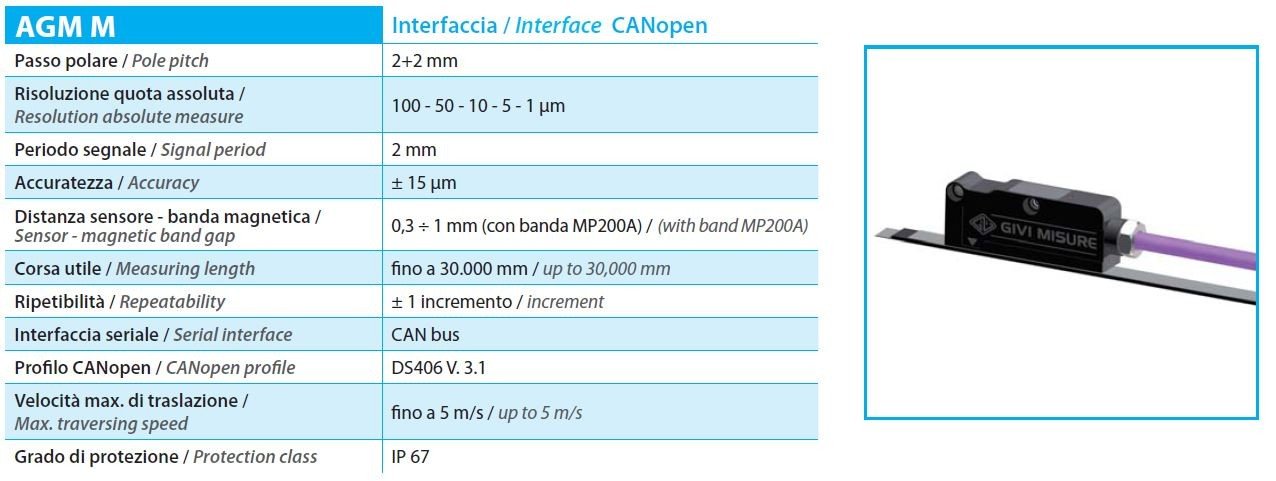

<p><strong>AGM M</strong></p>

<p>Pole pitch 2+2 mm, CANopen interface&nbsp;<a href="https://www.givimisure.it/wp-content/uploads/2019/03/ST04_A48_B_AGM_GIVI_ENG.pdf" target="_blank">Datasheet</a>&nbsp;<a href="javascript:;" target="_blank">Manual</a>&nbsp;</p>
