Models

• COMPACT VERSION: EtherCAT or VARAN on Board / STO / Multi-encoder interface

• PRO VERSION:  Offers possibilities for implementation in the area of encoderless safety

• APPLICATION VERSION: MultiRealTime Ethernet - fieldbus  connection (EtherCAT, ProfiNET, Powerlink) and module are configurable safety functions

Operation

• LCD operator for commissioning and display of system-related data
• USB operator for commissioning and display of system-related data and making a connection via USB

• Ethernet operator for commissioning and display of system-related data and making a connection via Ethernet

Communication

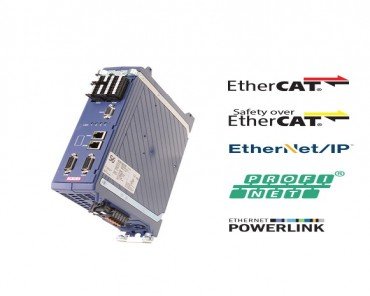

• Real-Time Ethernet interface
• CANopen on Board
• Diagnostics interface

• 2-channel multi-encoder interface on Board
• Drive profile according to CiA 402 / 61800-7

Motor operation

• Universal for asynchronous -, SMPM-, IPM-, High Torque, High Speed or synchronous reluctance motors
• Motor temperature monitoring KTY / PTC / PT 1000

• Integrated brake transistor
• Integrated brake control
• Improved shaft performance in asynchronous - and synchronous motors, including without encoder

High-End software functions

• V/f and current determinant operating modes
• Exceptional shaft performance due to torque pre-control
• Anti-cogging function
• Positioning without encoder

• Ultra-fast Speed Search Function
• Rated motor speeds up to 128,000 rpm
• Adjustable switching frequency
• Compatible for operation with sinusoidal filter
• Integral field-weakening regulator

• 2.6A to 12A
  - 0.75kW to 5.5kW
• Overload to 250%
• Optimum control quality
• Modular system

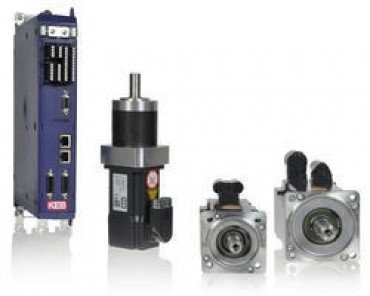

• Coordinated servo-motor range
• Flexible cooling design
• Wide motor type range
• 2-channel encoder feedback - Interface for evaluation of incremental encoder, Resolver, Sin/Cos, EnDat, Hiperface, BiSS, SSi, etc.
• Certified, integrated safety functions to PLe
• Control by drive profile according to CiA402
