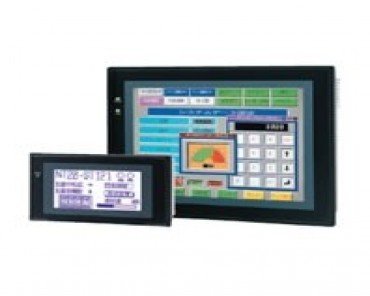

NT20, NT31(C)-EV3, NT631C-EV3

 Device monitoring and I/O comment loading functions facilitate system construction.  • Greatly enhanced NT Support Software with reusable screen data and powerful simulation on editing screens.  • Transfer the system program and screen data to ensure smooth on-site system maintenance and improve the efficiency of onsite work.  •Wide Range of Communications Interfaces.

Product Number: 197

Select Variant Enquiry Now

Key Features:

 Device monitoring and I/O comment loading functions facilitate system construction.  • Greatly enhanced NT Support Software with reusable screen data and powerful simulation on editing screens.  • Transfer the system program and screen data to ensure smooth on-site system maintenance and improve the efficiency of onsite work.  •Wide Range of Communications Interfaces.

Product Description

International Standards

<ul>
<li>The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.</li>
<li>Contact your OMRON representative for further details and applicable conditions for these standards.</li>
</ul>

NT631C

General Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th>Model</th>
<th>NT631C-ST153(B)-EV3</th>
</tr>
<tr>
<th>Rated power supply voltage</th>
<td>24 VDC</td>
</tr>
<tr>
<th>Allowable power supply voltage range</th>
<td>20.4 to 26.4 VDC (24 VDC -15%/+10%)</td>
</tr>
<tr>
<th>Power consumption</th>
<td>18 W max.</td>
</tr>
<tr>
<th>Ambient operating temperature</th>
<td>0 to 50 °C</td>
</tr>
<tr>
<th>Storage temperature</th>
<td>-20 to 60 °C</td>
</tr>
<tr>
<th>Ambient operating humidity</th>
<td>35% to 85% (with no condensation)</td>
</tr>
<tr>
<th>Ambient operating environment</th>
<td>No corrosive gases</td>
</tr>
<tr>
<th>Noise immunity</th>
<td>Conforms to IEC 61000-4-4 at 2 kV (power supply line).</td>
</tr>
<tr>
<th>Vibration resistance (during operation)</th>
<td>5 to 9 Hz, single amplitude: 3.5 mm
9 to 150 Hz, 9.8 m/s2
10 times (1 octave/min) each in X, Y, and Z directions</td>
</tr>
<tr>
<th>Shock resistance (during operation)</th>
<td>147 m/s2, 3 times each in X, Y, and Z directions</td>
</tr>
<tr>
<th>Weight</th>
<td>2.5 kg max.</td>
</tr>
<tr>
<th>Degree of protection (front panel)</th>
<td>Equivalent to IP65 oil-proof type and NEMA4 *</td>
</tr>
</tbody>
</table>



* The equipment cannot be used for long periods of time in locations which expose the panel to spills of oil.

Display/Panel Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th colspan="3" rowspan="1">Model</th>
<th>NT631C-ST153(B)-EV3</th>
</tr>
<tr>
<th colspan="1" rowspan="6">Display</th>
<th colspan="2" rowspan="1">Display device</th>
<td>Color TFT LCD</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Number of dots (resolution)</th>
<td>640 dots (horizontal) × 480 dots (vertical)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Effective display area</th>
<td>211 × 158 mm (10.4 inches)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Display color</th>
<td>8 colors (intermediate colors can be displayed in tiling patterns)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Service life</th>
<td>50,000 hours (until contrast is reduced by 50%)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Automatic turn-OFF</th>
<td>1 to 255 minutes/None</td>
</tr>
<tr>
<th>Backlight</th>
<th colspan="2" rowspan="1">Service life (when brightness is set
to high)</th>
<td>50,000 hours min. *</td>
</tr>
<tr>
<th colspan="1" rowspan="4">LED</th>
<th>POWER</th>
<th>Green</th>
<td>Lit while power is being supplied.</td>
</tr>
<tr>
<th colspan="1" rowspan="3">RUN</th>
<th>Green</th>
<td>Lit during operation</td>
</tr>
<tr>
<th>Orange</th>
<td>Lit when the battery voltage is low (when operating)</td>
</tr>
<tr>
<th>Red</th>
<td>Lit when the battery voltage is low (when stopped)</td>
</tr>
</tbody>
</table>



* The time until brightness is reduced by half, under normal temperature and normal humidity.

Operation Specifications



<table border="0 " cellspacing="0">
<tbody>
<tr>
<th colspan="2" rowspan="1">Model</th>
<th>NT631C-ST153(B)-EV3</th>
</tr>
<tr>
<th colspan="1" rowspan="4">Touch panel</th>
<th>Number of switches</th>
<td>768 (32 × 24)</td>
</tr>
<tr>
<th>Input</th>
<td>Pressure sensitive</td>
</tr>
<tr>
<th>Operating force</th>
<td>1 N max.</td>
</tr>
<tr>
<th>Service life</th>
<td>1,000,000 operations min.</td>
</tr>
</tbody>
</table>



External I/F Specifications



<table border="0 " cellspacing="0">
<tbody>
<tr>
<th colspan="2" rowspan="1">Model</th>
<th>NT631C-ST153(B)-EV3</th>
</tr>
<tr>
<th colspan="1" rowspan="2">Serial communications</th>
<th>Serial port A</th>
<td>Conforms to EIA RS-232C.
D-sub 9-pin connector (female)
+5 V (250 mA max.) output at pin No. 6</td>
</tr>
<tr>
<th>Serial port B</th>
<td>EIA RS-232C, (RS-422A/485 selectable by memory switch setting)
RS-232C: D-sub 9-pin connector (female)
RS-422A/485: Terminal block (6 terminals)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Parallel I/F</th>
<td>Conforms to Centronics specifications, 20-pin half-pitch connector</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Expansion I/F</th>
<td>Dedicated connector</td>
</tr>
</tbody>
</table>



Display Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th colspan="2" rowspan="1">Model</th>
<th>NT631C-ST153(B)-EV3</th>
</tr>
<tr>
<th colspan="1" rowspan="16">Display
elements</th>
<th>Character displays (fixed
display)</th>
<td colspan="1" rowspan="2">65,535 per screen (including marks)</td>
</tr>
<tr>
<th>Graphic displays</th>
</tr>
<tr>
<th>Character string displays</th>
<td>Up to 256 per screen (40 bytes (40 characters) per string)</td>
</tr>
<tr>
<th>Numerical displays</th>
<td>256 per screen, max. 10-digit display (2 words)</td>
</tr>
<tr>
<th>Bar graph displays</th>
<td>Up to 50 per screen, percentage display and sign display are possible.</td>
</tr>
<tr>
<th>Analogue meter</th>
<td>Up to 50 per screen, percentage display and sign display are possible.</td>
</tr>
<tr>
<th>Trend graphs</th>
<td>One frame per screen, 50 graphs per frame (only 8 graphs per frame with
data logging)</td>
</tr>
<tr>
<th>Broken line graphs</th>
<td>One frame per screen, 256 graphs per frame, 512 points per graph</td>
</tr>
<tr>
<th>Lamps</th>
<td>Up to 256 per screen</td>
</tr>
<tr>
<th>Image library displays</th>
<td>Up to 256 per screen</td>
</tr>
<tr>
<th>Touch switches</th>
<td>Up to 256 per screen, Max. overlap: 256 mesh</td>
</tr>
<tr>
<th>Numeral inputs</th>
<td colspan="1" rowspan="2">Up to 256 per screen</td>
</tr>
<tr>
<th>Thumbwheel switches</th>
</tr>
<tr>
<th>Character string inputs</th>
<td>Up to 256 per screen</td>
</tr>
<tr>
<th>Alarm lists</th>
<td colspan="1" rowspan="2">Up to 4 groups per screen</td>
</tr>
<tr>
<th>Alarm histories</th>
</tr>
<tr>
<th colspan="1" rowspan="4">Screen
types</th>
<th>Normal screen</th>
<td>The normal screen display</td>
</tr>
<tr>
<th>Overlapping screens</th>
<td>A maximum of 8 registered screens can be displayed overlapped with each
other.</td>
</tr>
<tr>
<th>Window screens</th>
<td>Up to 3 screens (2 local windows and 1 global window) can be displayed at
the same time.</td>
</tr>
<tr>
<th>Display history screens</th>
<td>Order of occurrence (max. 1,024 screens), order of frequency (max. 255
times)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Screen attributes</th>
<td>Buzzer, display history, background color, backlight, keyboard screen number</td>
</tr>
<tr>
<th colspan="1" rowspan="2">Number
of
screens</th>
<th>Max. number of registered
screens</th>
<td>3,999 screens</td>
</tr>
<tr>
<th>Screen No.</th>
<td>0: No display
1 to 3999: User-registered screens
9000: "Initializing system" screen
9001: Display history (occurrence order) screen
9002: Display history (frequency order) screen
9020: Programming Console function screen
9999: Return to the previous screen
9021 to 9023: Device monitor</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Screen registration method</th>
<td>By transmitting screen data created using the Support Tool to the NT631C
By transmitting screen data stored in a memory unit to the NT631C</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Screen saving method</th>
<td>Flash memory (screen data memory in the PT)</td>
</tr>
</tbody>
</table>



Display Element Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th>Model</th>
<th>NT631C-ST153(B)-EV3</th>
</tr>
<tr>
<th>Display characters</th>
<td>Half-size characters (8 × 8 dots): Alphanumerics and symbols
Normal-size characters (8 × 16 dots): Alphanumerics and symbols
Mark data (16 × 16 dots): User defined picture characters</td>
</tr>
<tr>
<th>Enlargement function</th>
<td>Normal size, double width, double height, and magnifications of 4X, 9X, 16X, 64X</td>
</tr>
<tr>
<th>Smoothing processing</th>
<td>Available for enlarged characters with magnification of 4X or greater (excluding marks)</td>
</tr>
<tr>
<th>Character display attribute</th>
<td>Normal, reverse, flashing, reverse and flashing, transparent</td>
</tr>
<tr>
<th>Image data</th>
<td>Variable-size pictograph
Size: Min. 8 × 8 dots, Max. 640 × 480 dots
The size can be set in 8-dot units.
It is not possible to set enlarged display, smoothing processing, or display attributes such
as reverse/flashing.</td>
</tr>
<tr>
<th>Library data</th>
<td>Combination of any characters and graphics
Size: Min. 1 × 1 dots, Max. 640 × 480 dots
Any size can be set.
Enlarged display, smoothing processing, and display attributes such as reverse/flashing
are displayed according to the setting registered.</td>
</tr>
<tr>
<th>Graphics</th>
<td>Polyline, circle, arc, fan, square, polygon</td>
</tr>
<tr>
<th>Line type</th>
<td>Solid line, dotted line, alternate long and short dash, long and two short dashes (only
polylines for other than solid lines)</td>
</tr>
<tr>
<th>Tilling</th>
<td>10 types</td>
</tr>
<tr>
<th>Graphic display attribute</th>
<td>Normal, flashing, reverse, reverse flashing</td>
</tr>
<tr>
<th>Display colors</th>
<td>8 colors (black/blue/red/purple/green/light blue/yellow/white)</td>
</tr>
</tbody>
</table>



Data Capacities



<table border="0" cellspacing="0">
<tbody>
<tr>
<th>Model</th>
<th>NT631C-ST153(B)-EV3</th>
</tr>
<tr>
<th>Screen data capacity</th>
<td>1 MB</td>
</tr>
<tr>
<th>Numeric memory table</th>
<td>2 words x up to 2,000 (1,000 tables can be backed up with battery)</td>
</tr>
<tr>
<th>Character string
memory table</th>
<td>40 normal-size characters x up to 2,000 (Data can be written to and read from 500 tables)</td>
</tr>
<tr>
<th>Bit memory table</th>
<td>1 bit × 1,000</td>
</tr>
<tr>
<th>Mark data</th>
<td>224 (16-by-16-dot basis)</td>
</tr>
<tr>
<th>Image data</th>
<td>4,095 items</td>
</tr>
<tr>
<th>Library data</th>
<td>12,288 items</td>
</tr>
</tbody>
</table>



NT31/NT31C

General Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th>Model</th>
<th>NT31-ST123(B)-EV3/NT31C-ST143(B)-EV3</th>
</tr>
<tr>
<th>Rated power supply voltage</th>
<td>24 VDC</td>
</tr>
<tr>
<th>Allowable power supply voltage range</th>
<td>20.4 to 26.4 VDC (24 VDC -15%/+10%)</td>
</tr>
<tr>
<th>Power consumption</th>
<td>15 W max.</td>
</tr>
<tr>
<th>Ambient operating temperature</th>
<td>0 to 50 °C</td>
</tr>
<tr>
<th>Storage temperature</th>
<td>-20 to 60 °C</td>
</tr>
<tr>
<th>Ambient operating humidity</th>
<td>35% to 85% (with no condensation)</td>
</tr>
<tr>
<th>Ambient operating environment</th>
<td>No corrosive gases</td>
</tr>
<tr>
<th>Noise immunity</th>
<td>Conforms to IEC 61000-4-4 at 2 kV (power supply line).</td>
</tr>
<tr>
<th>Vibration resistance (during operation)</th>
<td>5 to 9 Hz, single amplitude: 3.5 mm
9 to 150 Hz, 9.8 m/s2
10 times (1 octave/min) each in X, Y, and Z directions</td>
</tr>
<tr>
<th>Shock resistance (during operation)</th>
<td>147 m/s2, 3 times each in X, Y, and Z directions</td>
</tr>
<tr>
<th>Weight</th>
<td>1 kg max.</td>
</tr>
<tr>
<th>Degree of protection (front panel)</th>
<td>Equivalent to IP65 oil-proof type and NEMA4 (See note.)</td>
</tr>
</tbody>
</table>



Note: The equipment cannot be used for long periods of time in locations which expose the panel to spills of oil.

Display/Panel Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th colspan="3" rowspan="1">Model</th>
<th>NT31-ST123(B)-EV3</th>
<th>NT31C-ST143(B)-EV3</th>
</tr>
<tr>
<th colspan="1" rowspan="7">Display</th>
<th colspan="2" rowspan="1">Display device</th>
<td>Monochrome STN LCD</td>
<td>Color STN LCD</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Number of dots (resolution)</th>
<td colspan="2" rowspan="1">320 dots (horizontal) × 240 dots (vertical)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Effective display area</th>
<td colspan="2" rowspan="1">118.2 × 89.4 mm (5.7 inches)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Display color</th>
<td>Black/White (2 colors)</td>
<td>8 colors (intermediate colors can be
displayed in tiling patterns)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Service life</th>
<td colspan="2" rowspan="1">50,000 hours (until contrast is reduced by 50%)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Automatic turn-OFF</th>
<td colspan="2" rowspan="1">1 to 255 minutes/None</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Contrast adjustment</th>
<td colspan="2" rowspan="1">100 levels of adjustment possible using the front touch panel</td>
</tr>
<tr>
<th colspan="1" rowspan="2">Backlight</th>
<th colspan="2" rowspan="1">Service life (when brightness
is set to high)</th>
<td colspan="2" rowspan="1">50,000 hours min. (See note.)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Brightness adjustment</th>
<td colspan="2" rowspan="1">3 levels of adjustment possible using the front touch panel</td>
</tr>
<tr>
<th colspan="1" rowspan="4">LED</th>
<th>POWER</th>
<th>Green</th>
<td colspan="2" rowspan="1">Lit while power is being supplied</td>
</tr>
<tr>
<th colspan="1" rowspan="3">RUN</th>
<th>Green</th>
<td colspan="2" rowspan="1">Lit during operation</td>
</tr>
<tr>
<th>Orange</th>
<td colspan="2" rowspan="1">Lit when the battery voltage is low (when operating)</td>
</tr>
<tr>
<th>Red</th>
<td colspan="2" rowspan="1">Lit when the battery voltage is low (when stopped)</td>
</tr>
</tbody>
</table>



Note: The time until brightness is reduced by half, under normal temperature and normal humidity.

Operation Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th colspan="2" rowspan="1">Model</th>
<th>NT31-ST123(B)-EV3/NT31C-ST143(B)-EV3</th>
</tr>
<tr>
<th colspan="1" rowspan="4">Touch panel</th>
<th>Number of switches</th>
<td>192 (16 × 12)</td>
</tr>
<tr>
<th>Input</th>
<td>Pressure sensitive</td>
</tr>
<tr>
<th>Operating force</th>
<td>1 N max.</td>
</tr>
<tr>
<th>Service life</th>
<td>1,000,000 operations min.</td>
</tr>
</tbody>
</table>



External I/F Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th colspan="2" rowspan="1">Model</th>
<th>NT31-ST123(B)-EV3/NT31C-ST143(B)-EV3</th>
</tr>
<tr>
<th colspan="1" rowspan="2">Serial
communications</th>
<th>Serial port A</th>
<td>Conforms to EIA RS-232C
D-sub 9-pin connector (female)
+5 V (250 mA max.) output at pin No. 6</td>
</tr>
<tr>
<th>Serial port B</th>
<td>EIA RS-232C (RS-422A/485 selectable by memory switch setting)
D-sub 25-pin connector (female)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Parallel I/F</th>
<td>Conforms to Centronics specifications, 20-pin half-pitch connector</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Expansion I/F</th>
<td>Dedicated connector</td>
</tr>
</tbody>
</table>



Display Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th colspan="2" rowspan="1">Model</th>
<th>NT31-ST123(B)-EV3/NT31C-ST143(B)-EV3</th>
</tr>
<tr>
<th colspan="1" rowspan="16">Display
elements</th>
<th>Character displays
(fixed display)</th>
<td colspan="1" rowspan="2">65,535 per screen (including marks)</td>
</tr>
<tr>
<th>Graphic displays</th>
</tr>
<tr>
<th>Character string displays</th>
<td>Up to 256 per screen (40 bytes (40 characters) per string)</td>
</tr>
<tr>
<th>Numerical displays</th>
<td>256 per screen, max. 10-digit display (2 words)</td>
</tr>
<tr>
<th>Bar graph displays</th>
<td>Up to 50 per screen, percentage display and sign display are possible.</td>
</tr>
<tr>
<th>Analogue meter</th>
<td>Up to 50 per screen, percentage display and sign display are possible.</td>
</tr>
<tr>
<th>Trend graphs</th>
<td>One frame per screen, 50 graphs per frame
(only 8 graphs per frame with data logging)</td>
</tr>
<tr>
<th>Broken line graphs</th>
<td>One frame per screen, 256 graphs per frame,
320 points per graph</td>
</tr>
<tr>
<th>Lamps</th>
<td>Up to 256 per screen</td>
</tr>
<tr>
<th>Image library displays</th>
<td>Up to 256 per screen</td>
</tr>
<tr>
<th>Touch switches</th>
<td>Up to 256 per screen, Max. overlap: 256 mesh</td>
</tr>
<tr>
<th>Numeral inputs</th>
<td colspan="1" rowspan="2">Up to 256 per screen</td>
</tr>
<tr>
<th>Thumbwheel switches</th>
</tr>
<tr>
<th>Character string inputs</th>
<td>Up to 256 per screen</td>
</tr>
<tr>
<th>Alarm lists</th>
<td colspan="1" rowspan="2">Up to 4 groups per screen</td>
</tr>
<tr>
<th>Alarm histories</th>
</tr>
<tr>
<th colspan="1" rowspan="4">Screen
types</th>
<th>Normal screen</th>
<td>The normal screen display</td>
</tr>
<tr>
<th>Overlapping screens</th>
<td>A maximum of 8 registered screens can be displayed overlapped with each other.</td>
</tr>
<tr>
<th>Window screens</th>
<td>Up to 3 screens (2 local windows and 1 global window) can be displayed at the
same time.</td>
</tr>
<tr>
<th>Display history screens</th>
<td>Order of occurrence (max. 1,024 screens), order of frequency (max. 255 times)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Screen attributes</th>
<td>Buzzer, display history, background color, backlight, keyboard screen number</td>
</tr>
<tr>
<th colspan="1" rowspan="2">Number
of
screens</th>
<th>Max. number of
registered screens</th>
<td>3,999 screens</td>
</tr>
<tr>
<th>Screen No.</th>
<td>0: No display
1 to 3999: User-registered screens
9000: "Initializing system" screen
9001: Display history (occurrence order) screen
9002: Display history (frequency order) screen
9020: Programming Console function screen
9999: Return to the previous screen
9021 to 9023: Device monitor</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Screen registration method</th>
<td>By transmitting screen data created using the
Support Tool to the NT31/NT31C
By transmitting screen data stored in a memory
unit to the NT31/NT31C (automatic/manual)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Screen saving method</th>
<td>Flash memory (screen data memory in the PT)</td>
</tr>
</tbody>
</table>



Display Element Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th>Model</th>
<th>NT31-ST123(B)-EV3</th>
<th>NT31C-ST143(B)-EV3</th>
</tr>
<tr>
<th>Display characters</th>
<td colspan="2" rowspan="1">Half-size characters (8 × 8 dots): Alphanumerics and symbols
Normal-size characters (8 × 16 dots): Alphanumerics and symbols
Mark data (16 × 16 dots): User defined picture characters</td>
</tr>
<tr>
<th>Enlargement function</th>
<td colspan="2" rowspan="1">Normal size, double width, double height, and magnifications of 4X, 9X, 16X, 64X</td>
</tr>
<tr>
<th>Smoothing processing</th>
<td colspan="2" rowspan="1">Available for enlarged characters with magnification of 4X or greater (excluding marks)</td>
</tr>
<tr>
<th>Character display attribute</th>
<td colspan="2" rowspan="1">Normal, reverse, flashing, reverse and flashing, transparent</td>
</tr>
<tr>
<th>Image data</th>
<td colspan="2" rowspan="1">Variable-size pictograph
Size: Min. 8 × 8 dots, Max. 320 × 240 dots
The size can be set in 8-dot units.
It is not possible to set enlarged display, smoothing processing, or display attributes such
as reverse/flashing.</td>
</tr>
<tr>
<th>Library data</th>
<td colspan="2" rowspan="1">Combination of any characters and graphics
Size: Min. 1 × 1 dots, Max. 320 × 240 dots
Any size can be set.
Enlarged display, smoothing processing, and display attributes such as reverse/flashing
are displayed according to the setting registered.</td>
</tr>
<tr>
<th>Graphics</th>
<td colspan="2" rowspan="1">Polyline, circle, arc, fan, square, polygon</td>
</tr>
<tr>
<th>Line type</th>
<td colspan="2" rowspan="1">Solid line, dotted line, alternate long and short dash, long and two short dashes (only
polylines for other than solid lines)</td>
</tr>
<tr>
<th>Tilling</th>
<td colspan="2" rowspan="1">10 types</td>
</tr>
<tr>
<th>Graphic display attribute</th>
<td colspan="2" rowspan="1">Normal, flashing, reverse, reverse flashing</td>
</tr>
<tr>
<th>Display colors</th>
<td>2 colors (black/white)</td>
<td>8 colors (black/blue/red/purple/ green/
light blue/yellow/white)</td>
</tr>
</tbody>
</table>



Data Capacities



<table border="0" cellspacing="0">
<tbody>
<tr>
<th>Model</th>
<th>NT31-ST123(B)-EV3/NT31C-ST143(B)-EV3</th>
</tr>
<tr>
<th>Screen data capacity</th>
<td>1 MB</td>
</tr>
<tr>
<th>Numeric memory table</th>
<td>2 words x up to 2,000 (1,000 tables can be backed up with battery)</td>
</tr>
<tr>
<th>Character string memory table</th>
<td>40 normal-size characters x up to 2,000 (Data can be written to and read from 500 tables)</td>
</tr>
<tr>
<th>Bit memory table</th>
<td>1 bit × 1,000</td>
</tr>
<tr>
<th>Mark data</th>
<td>224 (16-by-16-dot basis)</td>
</tr>
<tr>
<th>Image data</th>
<td>4,095 items</td>
</tr>
<tr>
<th>Library data</th>
<td>12,288 items</td>
</tr>
</tbody>
</table>



NT20

General Specifications



<table border="0 " cellspacing="0">
<tbody>
<tr>
<th>Model</th>
<th>NT20-ST121(B)/128(B)</th>
</tr>
<tr>
<th>Rated power supply voltage</th>
<td>24 VDC</td>
</tr>
<tr>
<th>Allowable power supply voltage range</th>
<td>20.4 to 27.6 VDC (24 VDC -15%/+10%)</td>
</tr>
<tr>
<th>Allowable power interruption time</th>
<td>Not specified</td>
</tr>
<tr>
<th>Power consumption</th>
<td>10 W max.</td>
</tr>
<tr>
<th>Ambient operating temperature</th>
<td>0 to 50 °C *1 (with no condensation)</td>
</tr>
<tr>
<th>Storage temperature</th>
<td>-20 to 70 °C</td>
</tr>
<tr>
<th>Ambient operating humidity</th>
<td>35% to 85 % (0 to 40 °C)
35% to 50 % (40 to 50 °C) (with no condensation)</td>
</tr>
<tr>
<th>Ambient storage humidity</th>
<td>35% to 85 % (-20 to 40 °C)
35% to 50 % (40 to 50 °C)
35% to 45 % (50 to 70 °C) (with no condensation)</td>
</tr>
<tr>
<th>Ambient operating environment</th>
<td>No corrosive gases</td>
</tr>
<tr>
<th>Noise immunity</th>
<td>Conforms to IEC 61000-4-4 at 2 kV (power supply line).</td>
</tr>
<tr>
<th>Vibration resistance
(during operation)</th>
<td>5 to 9 Hz, single amplitude: 3.5 mm
9 to 150 Hz, 9.8 m/s2
10 times (1 octave/min) each in X, Y, and Z directions</td>
</tr>
<tr>
<th>Shock resistance (during operation)</th>
<td>147 m/s2 , 3 times each in X, Y, and Z directions</td>
</tr>
<tr>
<th>Dimensions</th>
<td>190 × 108 × 53.5 mm (W × H × D)</td>
</tr>
<tr>
<th>Panel cutout dimensions</th>
<td>178.5 + 0.50 × 98.5 + 0.50 mm (horizontal × vertical)
Panel thickness: 1.6 to 4.8 mm</td>
</tr>
<tr>
<th>Weight</th>
<td>0.7 kg max.</td>
</tr>
<tr>
<th>Degree of protection</th>
<td>Front panel operating section: Equivalent to IP65 oil-proof type and NEMA 4. *2</td>
</tr>
<tr>
<th>Applicable standards</th>
<td>UL 1604 Class 1 Division 2, EC Directives</td>
</tr>
</tbody>
</table>





*1. The display quality (e.g., contrast) will deteriorate at temperatures above 40°C. At low temperatures, the response
       speed will be reduced due to the characteristics of liquid crystal.
*2. The NT631/NT31/NT20 may not be able to be used in locations subject to long-term oil exposure.



Display/Panel Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th colspan="2" rowspan="1">Item</th>
<th>Specifications</th>
</tr>
<tr>
<th colspan="1" rowspan="6">Display *1</th>
<th>Display device</th>
<td>Monochrome STN LCD</td>
</tr>
<tr>
<th>Number of dots
(resolution)</th>
<td>140 (128) × 260 (256) dots (horizontal × vertical)
Dot size: 0.42 mm
The number of dots that can be used in NT20 system programs is indicated in
parentheses.</td>
</tr>
<tr>
<th>Effective display area</th>
<td>66 (57.6) × 120 (115.2) mm (horizontal × vertical)
The effective display area that can be used with NT20 system programs is
indicated in parentheses.</td>
</tr>
<tr>
<th>Display mode</th>
<td>Blue mode</td>
</tr>
<tr>
<th>Service life</th>
<td>50,000 hours min.</td>
</tr>
<tr>
<th>Contrast adjustment</th>
<td>The contrast can be adjusted from the back of the PT.</td>
</tr>
<tr>
<th colspan="1" rowspan="4">Backlight</th>
<th>Service life</th>
<td>50,000 hours min. *2</td>
</tr>
<tr>
<th>Replacement</th>
<td>Cannot be replaced.</td>
</tr>
<tr>
<th>Brightness adjustment</th>
<td>Cannot be set.</td>
</tr>
<tr>
<th>Automatic turn-OFF</th>
<td>Can be set to either 10 minutes, 1 hour, or lit.</td>
</tr>
<tr>
<th>Front-panel
indicator
LED</th>
<th>RUN</th>
<td>Lit green: Normal operation with Memory Unit automatic transfer completed.
Flashing green: Executing Memory Unit automatic transfer or automatic transfer
error.</td>
</tr>
</tbody>
</table>





*1. There are sometimes faulty in the touch panel, but this does not indicate an error as long as the number of bright or
       dark pixels does not exceed the following limits.
       4 total bright or dark defects maximum of the following size with no more than one per 20-mm square: 0.2 mm <
       (short dia. + long dia.)/2 < 0.55 mm
*2. This time is only a guide to the half-life of luminescence at room temperature and standard humidity.
       The service life will be dramatically reduced in low-temperature environments. For example, the service life at 0°C or
       less is approximately 10,000 hours (reference value).



Operation Specifications



<table border="0 " cellspacing="0">
<tbody>
<tr>
<th>Item</th>
<th>Specifications</th>
</tr>
<tr>
<th colspan="1" rowspan="5">Touch panel</th>
<td>Number of switches: Up to 72 registered per screen (12 × 6 (horizontal × vertical))</td>
</tr>
<tr>
<td>Switch size: 9.14 × 9.18 mm (horizontal × vertical)</td>
</tr>
<tr>
<td>Input: Pressure sensitive</td>
</tr>
<tr>
<td>Operating force: 1 N max.</td>
</tr>
<tr>
<td>Service life: 1,000,000 operations min.</td>
</tr>
</tbody>
</table>



External I/F Specifications



<table border="0 " cellspacing="0">
<tbody>
<tr>
<th colspan="2" rowspan="1">Model</th>
<th>NT20-ST121(B)</th>
</tr>
<tr>
<th colspan="1" rowspan="2">Serial communications</th>
<th>Serial port A</th>
<td>Conforms to EIA RS-232C.
D-sub 9-pin connector (female)
+5 V (150 mA max.) output at pin No. 6
The +5 V output, however, cannot be used simultaneously at ports A and B.</td>
</tr>
<tr>
<th>Serial port B</th>
<td>EIA RS-232C
D-sub 9-pin connector (female)
+5 V (150 mA max.) output at pin No. 6
The +5 V output, however, cannot be used simultaneously at ports A and B.</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Expansion I/F</th>
<td>Dedicated connector</td>
</tr>
</tbody>
</table>



Display Specifications



<table border="0" cellspacing="0">
<tbody>
<tr>
<th colspan="2" rowspan="2">Item</th>
<th colspan="2" rowspan="1">Specifications</th>
</tr>
<tr>
<th>Host Link, NT Link, or C200H
Direct Communications</th>
<th>Memory Link (RS-232C)
Communications</th>
</tr>
<tr>
<th colspan="1" rowspan="8">Display
elements</th>
<th>Display characters</th>
<td colspan="2" rowspan="1">Fixed displays (character strings registered for each screen)</td>
</tr>
<tr>
<th>Character string
displays</th>
<td>32 per screen</td>
<td>128 per file, 32 per screen</td>
</tr>
<tr>
<th>Numeric displays *</th>
<td colspan="2" rowspan="1">50 per screen max., 8-digit display</td>
</tr>
<tr>
<th>Bar graph displays *</th>
<td colspan="2" rowspan="1">50 per screen</td>
</tr>
<tr>
<th>Graphic displays</th>
<td colspan="2" rowspan="1">Any position</td>
</tr>
<tr>
<th>Lamps</th>
<td>128 per screen</td>
<td>256 max. per file</td>
</tr>
<tr>
<th>Touch switches</th>
<td>72 per screen</td>
<td>256 max. per file</td>
</tr>
<tr>
<th>Numeral settings</th>
<td colspan="2" rowspan="1">Numeral setting display (8 digits), 50 per screen</td>
</tr>
<tr>
<th colspan="1" rowspan="3">Screen
types</th>
<th>Normal screen</th>
<td colspan="2" rowspan="1">The normal screen display</td>
</tr>
<tr>
<th>Overlapping screens</th>
<td colspan="2" rowspan="1">A maximum of 8 registered screens can be displayed overlapped with each other.</td>
</tr>
<tr>
<th>Continuous screens</th>
<td colspan="2" rowspan="1">Switch among up to 8 screens (Use ↑ and ↓ touch switch keys to switch screens.)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Screen attributes</th>
<td>Buzzer, numeral settings, backlight</td>
<td>Buzzer, numeral settings, backlight, bit inputs</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Number of screens</th>
<td colspan="2" rowspan="1">495 screens max.</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Screen registration method</th>
<td colspan="2" rowspan="1">By transmitting screen data created using the Support Tool to the NT20
By transmitting screen data stored in a Memory Unit to the NT20 (automatic/manual)</td>
</tr>
<tr>
<th colspan="2" rowspan="1">Screen saving method
(image data memory)</th>
<td colspan="2" rowspan="1">Flash memory (specific NT20 format)</td>
</tr>
</tbody>
</table>





* No. of numeral table entries that can be used (No. of numeral displays used + No. of graphs used + No. of numeral
  settings) ≤128



Display Element Specifications



<table border="0 " cellspacing="0">
<tbody>
<tr>
<th>Item</th>
<th>Specifications</th>
</tr>
<tr>
<th colspan="1" rowspan="3">Display characters</th>
<td>Half-size characters (8 × 8 dots): Alphanumerics and symbols</td>
</tr>
<tr>
<td>Normal-size characters (8 × 16 dots): Alphanumerics and symbols</td>
</tr>
<tr>
<td>Mark data (16 × 16 dots): User defined picture characters</td>
</tr>
<tr>
<th>Enlargement function</th>
<td>Double width, double height, and magnifications 4X, 9X, 16X</td>
</tr>
<tr>
<th>Smoothing processing</th>
<td>Available for enlarged characters with magnification of 4X or greater</td>
</tr>
<tr>
<th>Character display attribute</th>
<td>Normal, reverse, flashing, reverse and flashing</td>
</tr>
<tr>
<th>Graphics</th>
<td>Polylines, circles</td>
</tr>
</tbody>
</table>



Data Capacities



<table border="0 " cellspacing="0">
<tbody>
<tr>
<th colspan="1" rowspan="2">Item</th>
<th colspan="2" rowspan="1">Specifications</th>
</tr>
<tr>
<th>Host Link, NT Link, or C200H Direct Communications</th>
<th>Memory Link (RS-232C) Communications</th>
</tr>
<tr>
<th>Character strings</th>
<td colspan="2" rowspan="1">32 characters × 128</td>
</tr>
<tr>
<th>Numeral data</th>
<td colspan="2" rowspan="1">8 digits × 128</td>
</tr>
<tr>
<th>Mark data</th>
<td colspan="2" rowspan="1">64</td>
</tr>
<tr>
<th>Touch switches</th>
<td>No limit</td>
<td>256 per file max.</td>
</tr>
<tr>
<th>Lamps</th>
<td>No limit</td>
<td>256 per file max.</td>
</tr>
</tbody>
</table>

Data Sheet

No data sheets available.

Brochures

No brochures available.

Certificates

No certificates available.

Video

No product video available.

Review

There are no reviews yet.
