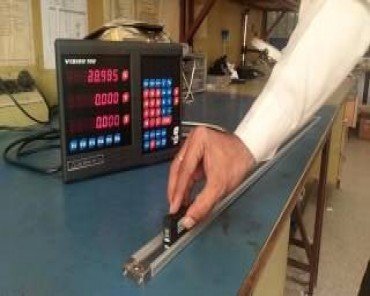

VISION VI-700

  • Compact-design, modern and functional digital readout.
  • Diagnostic of readout and optical scales.
  • Resolutions up to 0.5 μm.
  • Reading of coded references.
  • Universal software for any kind of machine tool.
  • Software upgrade through serial port.
  • 1,000 memory blocks.
  • Option: flush-mounted version (on a panel).
  • Easy and immediate use of several dedicated functions.

Main Functions

  • SELF-TESTING
  • DEVICE DIAGNOSTIC
  • INVERSION OF COUNTING DIRECTION
  • ABSOLUTE/INCREMENTAL COUNTING
  • MM/INCH CONVERSION
  • RADIUS/DIAMETER CONVERSION
  • VARIABLE RESOLUTION
  • SCALE ZERO REFERENCE (REF)
  • MEMORY CLEARING
  • POSITION RESET/PRESET
  • ANGULAR READING
  • SEXAGESIMAL DEGREES READING
  • CALCULATOR
  • AXIS COUPLING
  • W AXIS DISPLAYING
  • SPECIAL FUNCTIONS RECALL
  • 100 TOOL OFFSETS
  • 100 ORIGINS OF THE AXES
  • ZERO APPROACHING ALERT
  • SETTING THE TYPE OF SPINDLE ROTATION SPEED
  • CONSTANT PITCH
  • INCLINED CONSTANT PITCH
  • LINEAR CORRECTION
  • NON-LINEAR CORRECTION
  • SCALE FACTOR
  • CIRCUMFERENCE CENTER
  • MIDPOINT CALCULATION
  • MIRROR IMAGE
  • ROUND FLANGE
  • SPECIAL ROUND FLANGE
  • PROGRAMMING THE MEMORY BLOCKS
  • SERIAL OUTPUT RS-232
  • SETTING PRINTING LINE SPACINGS
  • ENABLING THE AUTOMATIC TRANSMISSION OF POSITIONS
  • BUZZER ON/OFF

FUNCTIONS OF THE LCD VERSION (VI700 L)

  • LANGUAGE SELECTION
  • TAPER CALCULATION
  • AUTOMATIC TAPER CALCULATION
  • THREADS CALCULATION
  • MATERIAL WEIGHT CALCULATION
  • PERIPHERAL SPEED CALCULATION
  • ANGULAR SPEED CALCULATION
  • SCALE FACTOR DISPLAYING
  • AXES SPEED DISPLAYING
  • RECALLED ORIGINS/TOOLS DISPLAYING
  • Descripton
  • Enquiry Now

VI722 -VI723 With 2 displays

VI722L –
VI723LWith 2 displays and LCD

VI733 – VI734 With 3 displays

VI733L – VI734L With 3 displays and LCD





Display 7 high-efficiency digits h = 17 mm
Encoder input signals 2 square waves with phase displacement
of 90° ± 5° and synchronized index
5 Vdc
Available resolutions  200 – 100 – 50 – 20 – 10 – 5 – 2 – 1 – 0.5 μm
1° – 0.5° – 0.2° – 0.1° – 0.05° – 0.02° – 0.01°
0.005° – 0.002° – 0.001°
 Protection class  keyboard IP 67 rear panel IP 42
Input axes 2 – 3
Applicable to lathe – milling machine – boring machine – etc.
Power supply 230 Vac ± 10% – 50/60 Hz 50 mA
110 Vac ± 10% – 60 Hz 100 mA
24 Vac ± 10% – 50/60 Hz 450 mA
Version standard or flush-mounted

DOWNLOAD BROCHURE




Display 7 high-efficiency digits h = 17 mm
Encoder input signals 2 square waves with phase displacement
of 90° ± 5° and synchronized index
5 Vdc
Available resolutions  200 – 100 – 50 – 20 – 10 – 5 – 2 – 1 – 0.5 μm
1° – 0.5° – 0.2° – 0.1° – 0.05° – 0.02° – 0.01°
0.005° – 0.002° – 0.001°
 Protection class  keyboard IP 67 rear panel IP 42
Input axes 2 – 3
Applicable to lathe – milling machine – boring machine – etc.
Power supply 230 Vac ± 10% – 50/60 Hz 50 mA
110 Vac ± 10% – 60 Hz 100 mA
24 Vac ± 10% – 50/60 Hz 450 mA
Version standard or flush-mounted

DOWNLOAD BROCHURE




Display 7 high-efficiency digits h = 17 mm
Encoder input signals 2 square waves with phase displacement
of 90° ± 5° and synchronized index
5 Vdc
Available resolutions  200 – 100 – 50 – 20 – 10 – 5 – 2 – 1 – 0.5 μm
1° – 0.5° – 0.2° – 0.1° – 0.05° – 0.02° – 0.01°
0.005° – 0.002° – 0.001°
 Protection class  keyboard IP 67 rear panel IP 42
Input axes 3 – 4
Applicable to lathe – milling machine – boring machine – etc.
Power supply 230 Vac ± 10% – 50/60 Hz 50 mA
110 Vac ± 10% – 60 Hz 100 mA
24 Vac ± 10% – 50/60 Hz 450 mA
Version standard or flush-mounted

DOWNLOAD BROCHURE




Display 7 high-efficiency digits h = 17 mm
Encoder input signals 2 square waves with phase displacement
of 90° ± 5° and synchronized index
5 Vdc
Available resolutions  200 – 100 – 50 – 20 – 10 – 5 – 2 – 1 – 0.5 μm
1° – 0.5° – 0.2° – 0.1° – 0.05° – 0.02° – 0.01°
0.005° – 0.002° – 0.001°
 Protection class  keyboard IP 67 rear panel IP 42
Input axes 3 – 4
Applicable to lathe – milling machine – boring machine – etc.
Power supply 230 Vac ± 10% – 50/60 Hz 50 mA
110 Vac ± 10% – 60 Hz 100 mA
24 Vac ± 10% – 50/60 Hz 450 mA
Version standard or flush-mounted

DOWNLOAD BROCHURE

FEATURES

Model VISION 700
1/2/3/4 Axes
Display High efficiency H = 17 mm
Signals Two square wawes out of phase 90° ± 5° 05Vdc
Frequency X – Y – Z – W Max 250 KHz
Resolution 200 – 100 – 50 – 20 – 10 – 5 – 2 – 1 µm – 0,5 µm
Resolution 1° – 0.5° – 0.2° – 0.1° – 0.05° – 0.02° – 0.01° – 0.005° – 0.002° – 0.001° Angular reading
Power supply Standard Special 230 Vac ± 20% 50/60 Hz 110 Vac ± 20% 60 Hz
Memory Static memory 48h autonomy
Protection Norme DIN 40050 IP 40
Temperature Operating Fonctionnement Storage Stockage 0° – 50°C
-20° – 70°C
Weight   ~ 1 Kg
