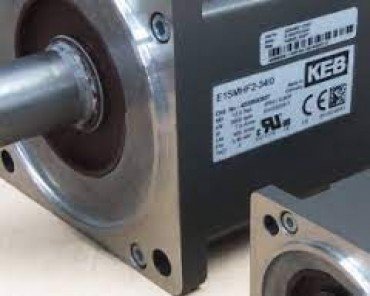

Servo Motors DL2 & DL3 Series
Key Features:
- Dynamic Line DL3 Designed as a system solution with COMBIVERT S6 actuators, the DL3 series offers universal motor series with smooth surface and compact angle connectors for use in mechanical engineering. The universal winding ensures flexible use on 230V and 400V actuators. Easy installation with pre-assembled connectors form the wiring for the motor and encoder system, available in lengths of 1 to 50 m. Dynamic Line DL2 The DL2 series is designed to meet additional requirements with further rated speeds and additional encoder system options.
Product Description
Dynamic Line DL3 Designed as a system solution with COMBIVERT S6 actuators, the DL3 series offers universal motor series with smooth surface and compact angle connectors for use in mechanical engineering. The universal winding ensures flexible use on 230V and 400V actuators. Easy installation with pre-assembled connectors form the wiring for the motor and encoder system, available in lengths of 1 to 50 m. Dynamic Line DL2 The DL2 series is designed to meet additional requirements with further rated speeds and additional encoder system options.
<p>Dynamic Line DL3</p>
<ul>
<li>Pivotable angle connectors, protection type IP54, smooth shaft</li>
<li>12 bit resolver (SAFETY READY)</li>
<li>KTY thermal winding protection </li>
<li>Rated torque from 0.2 to 70 Nm</li>
<li>Rated speeds 2000 to 8000 rpm</li>
<li>Optional: permanent magnet brake, Hiperface Single- 17bit and Multiturn 12/17bit, shaft with feather key</li>
</ul>
<p>Dynamic Line DL2</p>
<ul>
<li>Pivotable angle connectors, protection type IP54, smooth shaft</li>
<li>12 bit resolver</li>
<li>PTC thermal winding protection </li>
<li>permanent magnet brake </li>
<li>BISS Single- 19bit and Multiturn 12/19bit </li>
<li>shaft with feather key</li>
<li>protection class IP65 on the shaft side</li>
</ul>
