LECA / Products / KEB Automation / COMBILINE Filters / EMC Filters

Product Number: —

EAN: —

Categories: KEB Automation > COMBILINE Filters

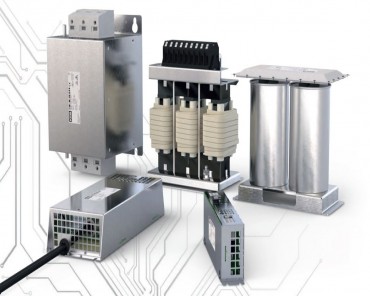

EMC Filters

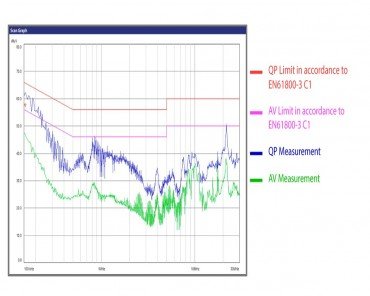

COMBILINE Radio interference filters Drives with rectifier supply produce low and high frequency system interference with their pulse-type charging currents, which are limited by EMC regulations.  Compliance with standards is ensured with universal EMC filters for individual interference suppression on the drive controller or as a central filter, designed for complete installation in a control cabinet.  COMBILINE radio interference filters are designed for an industrial environment or the residential sector, and are available for rated currents up to 1,000 A.

Product Number: — EAN:

Select Variant Enquiry Now

Key Features:

Fast-drying formula for quick repairs
Non-conductive properties for electrical safety
Excellent media resistance
Professional grade quality
Works reliably even under water
Can be applied on wet surfaces

Product Description

<h2>Product range</h2>

<ul>
<li>Single filter</li>
<li>IT mains supply filter </li>
<li>Filter for low leakage currents </li>
<li>3-phase central filter</li>
<li>Central filter with N </li>
<li>Combined input/output filter</li>
</ul>
