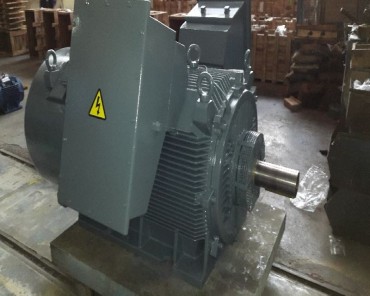

Bharat Bijlee is counted as a forerunner in HV and MV motors manufacturers in India. These motors are manufactured using Bharat Bijlee's tried and tested DCCA technology, offering high performance and better reliability with the use of dual cooling circuits. These HV and MV motors are suitable for use in various industrial sectors such as Power Generation, Mining, Chemical, Cement, Iron and Steel, Paper and Pulp, Water, Waste Water treatment etc. The motors can serve various applications such as Pump, Compressor, Conveyor, Mill, Fan, Blower, etc.

Bharat Bijlee uses a new efficient cooling system called Dual Circuit Cooling Arrangement (DCCA) for all its High Voltage motors in frame 315 and above. This technology consists of two independent cooling systems which improves the overall cooling of the motor. The primary cooling circuit is the regular stator casing with cooling fins. The shaft mounted external fan blows air over the body fin and cools the motor by forced convection and radiation. The secondary internal cooling circuit consists of rotor with vent holes, an impeller and ventilating passage on the stator body. The air inside the motor is circulated by the impeller which passes through the ventilating passage where it gets cooled on its way from non-driving end to the driving end by the primary circuit. This cool air then passes over the DE overhangs and through the rotor vents to the non-driving end and on its way absorbs heat from the overhangs and from the rotor. This heated air again passes through the impeller to the ventilating ducts and the cycle repeats.

Availability and Reliability are two words that we absolutely abide by at Bharat Bijlee. Our commitment to customer satisfaction makes us one of the most trusted MV motor manufacturers in India.
